9 kHz – 3 GHz with LISN

FFT EMI Receiver with LISN

  • Compliant with CISPR 16-1-1, MIL-STD-461, ANSI C63.2 and FCC
  • Compliant with CISPR 14-1 when in conjunction with CA0010
  • Conducted and radiated emission tests
  • Direct analog to digital conversion up to 30 MHz
  • Combination of EMI test receiver and spectrum analyzer
  • Operates gapless FFT
  • Very fast measuring time
  • Built-in Lines Impedance Stabilization Networks (LISN)
  • User port for driving external LISNs and ancillaries
  • Free PES PMM Emission Suite Software
  • Robust, compact construction
  • 140 dBμV (2 W) maximum input level without damage

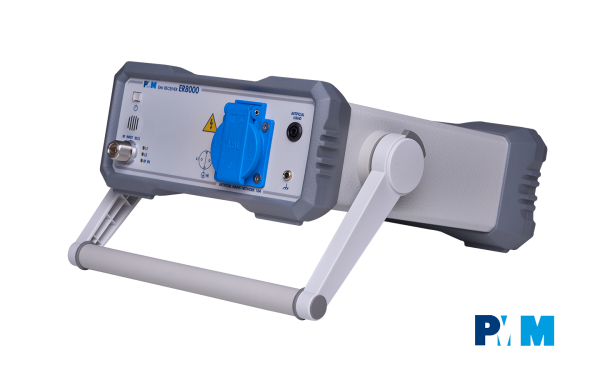

The Compact and Powerful EMI Receiver for Fast and Accurate Measurements

Flexibility and ease of use:

The ER8000 receiver stands out for its exceptional compactness, making it ideal for use in tight spaces. Despite its compact size, it offers exceptional flexibility and ease of use, making it accessible even to less experienced users.

High performance and regulatory compliance:

The high performance of the ER8000 makes it the ideal tool for the precise measurement of conducted and radiated emissions. Full compliance with CISPR 16-1-1 ensures maximum reliability of the results obtained.

Unprecedented measurement speed:

Thanks to its state-of-the-art FFT architecture, the ER8000 boasts exceptionally fast analysis times: just 2 seconds in band B and 1 minute in bands C+D. This feature allows you to optimize the measurement process and increase productivity.

Efficient front-end and versatile interface:

The ER8000’s front-end features an efficient preselector that guarantees exceptional performance in terms of sensitivity and selectivity. The intuitive user interface and USB port for controlling external devices such as LISNs and switching boxes complete the equipment of this versatile instrument.

Applications in design and certification:

The ER8000 is the ideal tool for performing emission measurement tests and characterizing EUTs (Equipment Under Test) quickly and efficiently. Its flexibility makes it suitable for use both in the design laboratory during product development and in an EMC laboratory for the certification of EMI measurements.

Two frequency ranges for different needs:

The ER8000 is available in two different frequency ranges:

  • 9 kHz to 30 MHz (ER8000 option 00)
  • 9 kHz to 3 GHz (ER8000 option 01)

Users can also upgrade from option 00 to option 01 at any time, ensuring maximum flexibility and scalability to meet specific needs.
