Description

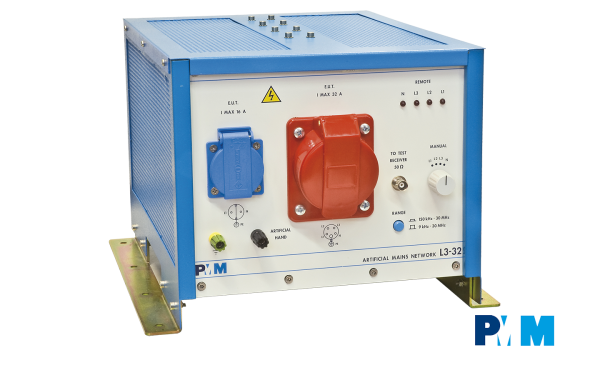

The L3-32 is a 3 phase LISN, used for RFI measurements on AC three-phase, power supplied electric and electronic equipment. It supports up to 32 ampere and is equipped with a frontal single-phase socket, for the most common devices.
The L3-32 ia a three line V-network with an equivalent circuit of 50 ohm // (5ohm + 50μH), equipped with a high pass filter 150 kHz – 30 MHz, suited to perform measurements on conducted interference in the frequency range from 9 kHz to 30 MHz.
Designed according to criteria of cheaply and compactness it can be used together with every PMM-Narda receiver, also in remote, for conducted interference, like the 9010F, or any other RF receiver.
